Showing 13–22 of 22 results
Belimo Non Fail-Safe Damper Actuators
Applications
Belimo rotary actuators without fail-safe can handle a magnitude of HVAC applications. Available in a wide range of nominal voltages and torques.Versatile in Performance and Function
Belimo non fail-safe damper actuators are designed for use in a wide variety of HVAC damper applications. With our comprehensive torque range from 2 Nm to 160 Nm and the ability to direct mount on standard damper shafts or jackshafts, these solutions are ideal for controlling dampers found in AHU, PAU, VAV terminal units, fan coil units, and unit ventilators used in hospitals, schools/universities, and data centres.
Accuracy and Controllability
The Belimo non fail-safe return damper actuators use brushless DC motor technology, which is controlled by an Application Specific Integrated Circuit (ASIC) guaranteeing minimum torque over the entire operating range with no loss in performance due to temperature, supply voltage or speed.
Specification
Torque: 1 Nm, 2 Nm, 4 Nm, 5 Nm, 8 Nm, 10 Nm, 16 Nm, 20 Nm, 40 Nm, 160 Nm Force: 50 N, 100 N, 150 N Voltage AC/DC: 120 V, 230 V, 24 V, 48 V, 72 V Control type: Open/close, 3-point, Modulating, Communicative, Hybrid (communicative / analogue) Running time: 2.5...19 s, 20...49 s, 50...79 s, 80...99 s, 100...150 s Mechanical interface: Form fit, Universal shaft clamp, Universal shaft clamp reversible Auxiliary switches: 1x SPDT, 2x SPDT Electrical connection: Cable, Connector plug, Terminals Protection category: IP20, IP54, IP66/67
Belimo Outdoor / Protected Damper Actuators
Applications
Belimo IP66/67 NEMA 4X actuators are particularly suitable for utilisation in outdoor applications and are protected against UV radiation, rain/snow, dirt, dust, air humidity.Reliability and Performance
Belimo IP66 / 67 housing design combined with extensive independent testing provides a complete, unmatched protection in extreme environments. The housings are weather-tight and corrosion resistant for the harshest indoor and outdoor conditions with UV protection. For high humidity or low temperature (-40°C) applications a heater option is available. These actuators are ideal for rooftop applications, indoor swimming pools, wood drying kilns, agriculture and food industries.
Belimo's unique IP66 / 67 housing incorporates its damper actuator and valve product lines. The housing design provides complete, unmatched protection in extreme environments.
Fail-safe function: Non-fail-safe, Fail-safe
Torque: 6 Nm, 10 Nm, 16 Nm, 20 Nm, 40 Nm, 160 Nm
Voltage AC/DC: 120 V, 230 V, 24 V, 48 V, 72 V
Control type: Open/close, 3-point, Modulating, Communicative, Hybrid (communicative / analogue)
Running time: 2.5…19 s, 20…49 s, 50…79 s, 80…99 s, 100…150 s, adjustable
Running time (fail-safe): 4 s, 20 s, 30 s, 35 s
Auxiliary switches: 1x SPDT, 2x SPDT
Electrical connection: Cable: Terminals Specification
Belimo Outdoor Sensors (Air)
Applications
Belimo's outdoor sensors for temperature and humidity have IP65 protection and provide all common active and passive output signals as well as Modbus and BACnet, depending on the version.Providing the Reliability, You Know and Expect
Outdoor mounted sensors designed to measure the outside temperature for efficient heating/cooling automation.
Efficient Air Quality
Outdoor mounted sensors equipped with a NEMA 4X / IP65 rated enclosure, snap cover and mounting plate for ease of installation are available with passive or active outputs and are compatible to major building automation systems. Combined temperature and humidity sensors with selectable relative humidity, absolute humidity, dew point and enthalpy outputs are available with optional BACnet and Modbus communications. These sensors measure the outdoor air to permit the DDC system to coordinate with actual building conditions ensuring accurate and efficient air quality. All outdoor sensors are UL certified and backed by a 5-year warranty.
Specification
Measured values: Temperature, Humidity, Light Output signal: 0...5 V, 0...10 V, 4...20 mA, Modbus, BACnet, Pt100, Pt1000, Ni1000, Ni1000TK5000, NTC10k (10k2), NTC10k Pre (10k3), NTC20k Additional features: Internal sensor, External sensor
Belimo Pipe Sensors (Water)
Applications
Belimo offers immersion and contact sensors. Choose the best mounting option for your temperature, pressure or flow measurements in and on the surface of pipes, boilers and tanks.Seamless Integration
Belimo offers a line of immersion and surface mounted sensors for temperature, condensation, static pressure, differential pressure and flow for measuring in or on the surface ensuring reliable operation.
Fast Response
Belimo surface mounted sensors incorporate a spring-loaded brass contact and a unique snap-on enclosure design allowing for quick installation, easy commissioning, NEMA 4X / IP65 protection, and UL certification. The brass arched probe surface with a plenum rated cable offers remote installation. Both models ensure fast response and accurate hydronic temperature readings
Specification
Measured values: Temperature, Safety temperature, Condensation, Relative pressure, Differential pressure, Flow Output signal: 0...5 V, 0...10 V, 4...20 mA, Switch, Modbus, BACnet, Pt100, Pt1000, Ni1000, Ni1000TK5000, NTC10k (10k2), NTC10k Pre (10k3), NTC10k Carel, NTC20k, 2...10 V, MP-Bus, 0.5...10 V Measuring range temperature (°C): -50...150 °C, -50...160 °C, -50...250 °C, -35...90 °C, -35...100 °C, 30...90 °C, 50...80 °C, 70...130 °C Measuring range pressure (bar): 0...1 bar, 0...2.5 bar, 0...4 bar, 0...6 bar, 0...10 bar, 0...16 bar, 0...25 bar, 0...5 bar, 0...35 bar Mounting type: Single point, Immersion, Contact sensor Probe length: 50 mm, 100 mm, 150 mm, 200 mm, 300 mm, 450 mm Display type: LCD, LED
Belimo Quick Running Damper Actuators / Fast Running Actuators
Applications
Belimo Fast Running actuators (from 2.5 sec.) are available with rotary or linear movement.Speed and Reliability
Belimo quick running damper actuators are available with rotary or linear actuators with open/close or modulating control. Field programmable types allow the running time, torque, operating range and position feedback to be optimised to the specific application. Cables, form-fits and clamps can be adapted individually upon request. Whether in room pressurisation fume hoods or VAV systems – the quick running actuators open and close air dampers fast to meet the critical needs of the system.
Versatile in Performance and Function
Whether in heating or cooling circuits, ventilation, extraction or VAV systems – the quick running actuators open and close air dampers at top speed. Quick running actuator ensures air performance in paint rooms, laboratories and other sensitive areas. Rugged motors, gearboxes and IP 54 housings guarantee a long service life even under the harsh conditions.
Specification
Movement type: Rotative, Linear Fail-safe function: Non fail-safe, Fail-safe Torque (Nm): 4 Nm, 6 Nm, 8 Nm, 16 Nm, 160 Nm Force (N): 100 N Stroke: 100 mm Voltage AC/DC: 120 V, 230 V, 24 V, 48 V, 72 V Control type: Open/close, 3-point, Modulating, Communicative, Hybrid (communicative / analogue) Running time: 2.5...19 s, 20...49 s, 50...79 s, 80...99 s, 100...150 s, adjustable Mechanical interface: Universal shaft clamp reversible, Universal shaft clamp, Form fit Running time (fail-safe): 4 s, 30 s Protection category: IP54, IP66/67
Belimo Room Units / Thermostate
Applications
Belimo room sensors and room operating units offer the architect an aesthetic and timeless design, the installer a quick assembly, the system integrator an easy commissioning and the end customer a comfortable indoor climate.Belimo sensors for a healthy and comfortable room climate
The new room units (sensors and room operating units) are the perfect addition to the existing product range. With the expansion of the product range for visible areas of the room, Belimo offers architects an aesthetic and timeless design. Installers appreciate quick assembly, system integrators easy commissioning with a smartphone. End customers enjoy not only a comfortable and healthy room climate but also the intuitive operation.
Lean, timeless design.
Belimo room units impress with their aesthetic, timeless design and the shallow depth between 13 and 23 mm, depending on the sensor type. The room units can be seamlessly integrated into existing third-party controllers. They feature fast, tool-free assembly as well as high long-term measurement accuracy and short reaction times. The Belimo Assistant App enables simple commissioning of the active room sensors and their diagnosis with a smartphone. Thanks to Near Field Communication (NFC), parametrisation is possible even if the room sensor is not connected to the power supply.
Specification
Unit type: Room controller, Room operating units, Room sensor Measured values: Temperature, Humidity, CO₂, Relative pressure, PM2.5_PM10, TVOC Output signal: 0...5 V, 0...10 V, Modbus, BACnet, Pt1000, Ni1000, Ni1000TK5000, NTC1k8, NTC10k (10k2), NTC10k Pre (10k3), NTC20k, 2...10 V, MP-Bus Mounting type: Wall mount, Room, Flush mount, Ceiling mount Additional features: NFC, Manual override and setpoint, Manual override Display type: Belimo Display App, Belimo Display App and LED, LED, Touchscreen, ePaper touch display, ePaper touch display and LED
Belimo Smoke Control Damper Actuators
Applications
Powerful technology in a compact design and energy-efficient operation. Belimo smoke control damper actuators provide reliably keeping escape and rescue routes free of smoke.Technology that Saves Lives
Belimo Smoke Control Damper Actuators designed for operation in smoke and combination fire and smoke dampers in ventilation and air-conditioning systems with a torque range from 15 Nm to 40 Nm @ 177°C. For maximum safety in all situations, Smoke Control Damper Actuators meet all codes for commercial buildings in the U.S., pass UL 555 and UL 555S at 177ºC and are tested for 30,000 open-closed cycles with approved dampers. Belimo Smoke Control Damper Actuators exceed UL’s requirement of 20,000 cycles at damper static load.
Safety in Buildings
Belimo Smoke Control Damper Actuators have an extensive torque range specifically designed for operation with fire, smoke, and combination fire and smoke dampers in ventilation and air-conditioning systems. As an integral part of the life safety system, Belimo provides high performance, low power consumption, and are compliant with Life Safety Codes and Standards.
Specification
Torque (Nm): 15 Nm, 25 Nm, 40 Nm Voltage AC/DC: 230 V, 24 V Control type: Open/close, Modulating Angle of rotation: 95º, 100º Electrical connection: Cable, Cable with connector plug

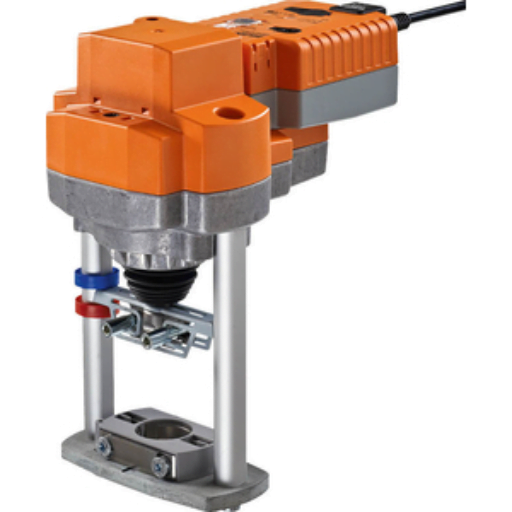

Belimo Valve Actuators
Applications
Belimo offers a comprehensive range of valve actuators - fail-safe or non fail-safe - with various control options to meet all needs of HVAC applications.Versatile in Performance and Function
Belimo valve actuators are designed for use in a wide variety of HVAC applications to ensure proper performance and reliability and to lower power consumption. With a comprehensive torque range (5 Nm to 160 Nm) suitable for different valve sizes, valve actuators can be used for a variety of applications, including fast-running, fail-safe, outdoor, etc.
Accuracy and Controllability
Belimo Characterised Control Valves feature the innovative ball design and are operated by a rotary actuator. The actuators are controlled by a standard voltage for on/off, modulating, or floating point control which moves the ball valve to the position dictated by the control system. The valve is bubble-tight preventing energy losses and helps reduce operating costs.
Specification
Movement type: Rotative, Linear Fail-safe function: Non-fail-safe, Fail-safe Torque (Nm): 1 Nm, 2 Nm, 2.5 Nm, 4 Nm, 5 Nm, 8 Nm, 10 Nm, 16 Nm, 20 Nm, 40 Nm, 90 Nm, 160 Nm, 400 Nm, 650 Nm, 1000 Nm, 1500 Nm, 2000 Nm, 2500 Nm, 3500 Nm Force (N): 1000 N, 1500 N, 2000 N, 2500 N, 4500 N Voltage AC/DC: 120 V, 230 V, 24 V, 48 V, 72 V Control type: Open/close, 3-point, Modulating, Communicative, Hybrid (communicative / analogue), Manual Running time: 2.5...19 s, 20...49 s, 50...79 s, 80...99 s, 100...150 s, >150 s, adjustable Running time (fail-safe): <20 s, <25 s, 30 s, 35 s, 60 s, <75 s Auxiliary switches: 1x SPDT, 2x SPDT Electrical connection: Cable, Terminals, Terminals with cable Protection category: IP40, IP42, IP54, IP66/67, IP67
Belimo Variable Air Volume (VAV)
Applications
Belimo VAV actuators provide solutions for volumetric flow and pressure control for VAV and CAV units.The Cost-efficient Way to Control Room Climate
Human health, well-being and work performance are crucially influenced by room climate. Belimo room and system solutions – a complete range of products for cost-efficient motorisation and control of zones and single rooms – are proven in numerous installations all over the world.
Better Working Atmosphere
The Belimo volumetric flow and pressure control products are suitable for different application: room air solution for working and public areas, pressure air application for sensitive working areas, room air and safety applications for trade and industry.
Specification
VAV application: Comfort, Process Air, Residential VAV family: VAV-Compact, VAV-Universal Air medium: Contaminated, Normal Torque (Nm): 4 Nm, 5 Nm, 6 Nm, 8 Nm, 10 Nm, 20 Nm Control type: Modulating, Communicative, Hybrid (communicative / analogue) Fail-safe function: Non-fail-safe, Fail-safe
Belimo Zone Valves
Applications
Belimo ZoneTight™ zone valves and actuators are designed for maximum efficiency in tight spaces.Efficient in Every Way
Designed for maximum efficiency in tight spaces, Belimo’s ZoneTight zone valve offering sets new design and performance standards for both pressure dependent and pressure independent zoning applications. Unlike short stroke globe valves, the self-cleaning ball helps minimise energy losses caused by clogging and eliminates overflow from pump pressure seat lift. In addition, high close-off capabilities ensure shut-off and allow for true equal percentage flow characteristics.
Super Compact and Versatile
Unlike short stroke globe valves, the zone tight self-cleaning ball helps minimise energy losses caused by clogging and eliminates overflow from pump pressure seat lift. Also, high close-off capabilities ensure shut-off (0% A – AB leakage) and allow for true equal percentage flow characteristics. Belimo’s ZoneTight zone valves are designed for maximum efficiency in tight spaces.
