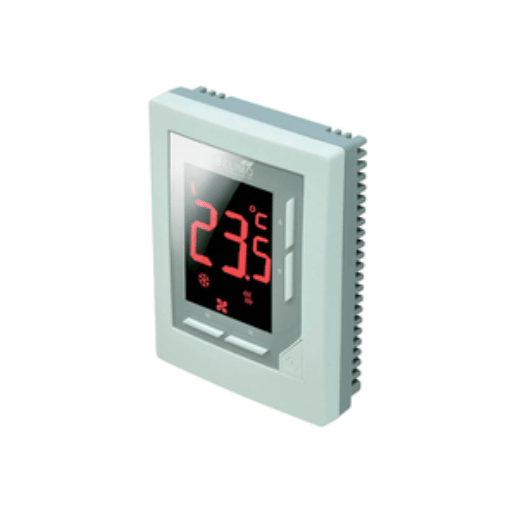

Belimo Room Units / Thermostate
Applications
Belimo room sensors and room operating units offer the architect an aesthetic and timeless design, the installer a quick assembly, the system integrator an easy commissioning and the end customer a comfortable indoor climate.
Belimo sensors for a healthy and comfortable room climate
The new room units (sensors and room operating units) are the perfect addition to the existing product range. With the expansion of the product range for visible areas of the room, Belimo offers architects an aesthetic and timeless design. Installers appreciate quick assembly, system integrators easy commissioning with a smartphone. End customers enjoy not only a comfortable and healthy room climate but also the intuitive operation.
Lean, timeless design.
Belimo room units impress with their aesthetic, timeless design and the shallow depth between 13 and 23 mm, depending on the sensor type. The room units can be seamlessly integrated into existing third-party controllers. They feature fast, tool-free assembly as well as high long-term measurement accuracy and short reaction times. The Belimo Assistant App enables simple commissioning of the active room sensors and their diagnosis with a smartphone. Thanks to Near Field Communication (NFC), parametrisation is possible even if the room sensor is not connected to the power supply.
Specification
Unit type: Room controller, Room operating units, Room sensor
Measured values: Temperature, Humidity, CO₂, Relative pressure, PM2.5_PM10, TVOC
Output signal: 0…5 V, 0…10 V, Modbus, BACnet, Pt1000, Ni1000, Ni1000TK5000, NTC1k8, NTC10k (10k2), NTC10k Pre (10k3), NTC20k, 2…10 V, MP-Bus
Mounting type: Wall mount, Room, Flush mount, Ceiling mount
Additional features: NFC, Manual override and setpoint, Manual override
Display type: Belimo Display App, Belimo Display App and LED, LED, Touchscreen, ePaper touch display, ePaper touch display and LED
Consulting Engineers
Your analytical skillset makes you an invaluable asset to your organisation. Though your job is to design systems and operating sequences that meet energy codes to make facilities run more efficiently, you constantly find yourself collecting information and analysing data when it could be spent looking for new and innovative ways to save energy and improve building performance. Belimo ball valves provide:
- Models available with tight close-off up to 1000 psi to ensure dependable operation
- Spring return, non fail-safe, and electronic fail-safe actuator to drive the valve open or closed during power failure to meet sequence requirements
- NEMA 4 actuator options for harsh outdoor applications
- High Kvs full port ball valves for isolation applications
- Customer focused organisation with support documentation requirements for plans and specifications
Contractors & Distributors
- Easy selection, installation, and hassle-free service
- Models with tight close-off up to 1400 kPa to ensure dependable operation
- Range of media temperature ratings suited for steam, chilled and hot water applications
- Assembled with rotary actuators offering easy field assembly and installation saving you time
- Fast delivery with extensive support
Building Owners
Building expansion and tenant improvements are a constant challenge to your facility department and the value of your property. You are having difficulty keeping clients comfortable, identifying ways to optimise your HVAC system, and preserving capital budgets. Belimo ball valves can offer:
- High performance VB series ANSI Class I50 or 300 carbon steel bodies which are ideal for aggressive applications
- 0% leakage or ANSI Class VI rating increasing plant Delta T efficiency and building comfort
- Serviceable trim components on VS and VSS series valves reducing replacement cost
- High Kvs ball valves with minimal pressure drop, which are ideal for isolation application where pumping costs are high
- NEMA 4 actuator options for harsh outdoor applications which assure long service life
Facility Managers
Higher energy prices combined with costly building inefficiencies are making your job more and more difficult to perform. While you should be looking for new and innovative ways to reduce energy consumption and improve facility performance, you’re simply too busy dealing with employees, troubleshooting technical issues, and trying to combat costly problems with more money. Belimo ball valves can provide:
- Excellent control stability maintaining occupant comfort level
- Better control to prevent “hunting” of the control loop, increasing life span of actuator and valve
- Models available with tight close-off up to 1400 kPa to ensure dependable operation
- Easy selection, installation, and service for improvement projects or retrofits
- Fast delivery and online technical support
ESCO
You are tasked with communicating to organisations how they can save energy and improve performance — but key opportunities are passing you by. Why? Most of your time is spent searching for new product innovations that are backed by proven and reliable energy savings data. Belimo ball valves offer:
- ANSI Class VI or 0% leakage rating offering increased plant Delta T efficiency and building comfort
- Tight close-off up to 1400 kPa to provide dependable performance
- Actuator to utilise full control signal for maximum resolution and precise control
- High Kvs ball valves with minimal pressure drop. These are ideal for isolation application where pumping costs are high
- Better control to prevent “hunting” of the control loop, increasing life span of actuator and valve
Commissioning Agents / Balancing Contractors
The responsibilities of your job are complex. Between managing and reviewing projects, along with balancing and commissioning systems, you’ve got a lot on your plate. What you’re looking for is an innovative product with proven energy savings data that meets your facility’s specifications without the hassle of a complex installation and/or costly maintenance requirements. Belimo ball valves offer:
- Manual override function to provide easy troubleshooting capabilities during start-up and commissioning
- MFT models with field selectable control and feedback signal, and running time to match design sequences and controller requirements
- Trending with Multi-Function Technology (MFT) models for system diagnosis
- Self-cleaning ball valve technology to provide superior clog resistance and ensure flow is maintained in heating and cooling systems
