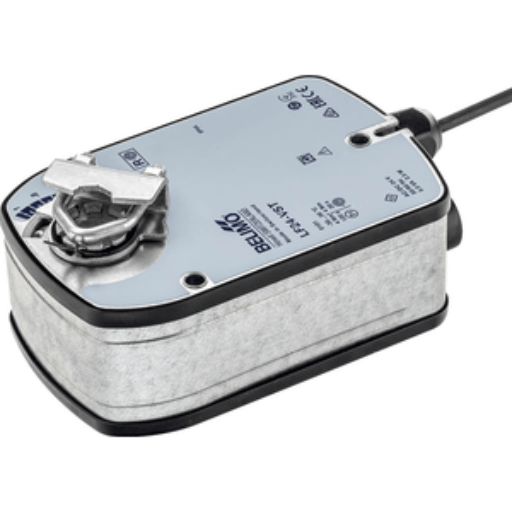

Belimo Variable Air Volume (VAV)
Applications
Belimo VAV actuators provide solutions for volumetric flow and pressure control for VAV and CAV units.
The Cost-efficient Way to Control Room Climate
Human health, well-being and work performance are crucially influenced by room climate. Belimo room and system solutions – a complete range of products for cost-efficient motorisation and control of zones and single rooms – are proven in numerous installations all over the world.
Better Working Atmosphere
The Belimo volumetric flow and pressure control products are suitable for different application: room air solution for working and public areas, pressure air application for sensitive working areas, room air and safety applications for trade and industry.
Specification
VAV application: Comfort, Process Air, Residential
VAV family: VAV-Compact, VAV-Universal
Air medium: Contaminated, Normal
Torque (Nm): 4 Nm, 5 Nm, 6 Nm, 8 Nm, 10 Nm, 20 Nm
Control type: Modulating, Communicative, Hybrid (communicative / analogue)
Fail-safe function: Non-fail-safe, Fail-safe
Consulting Engineers
Your analytical skillset makes you an invaluable asset to your organisation. Though your job is to design systems and operating sequences that meet energy codes to make facilities run more efficiently, you constantly find yourself collecting information and analysing data when it could be spent looking for new and innovative ways to save energy and improve building performance. Belimo ball valves provide:
- Models available with tight close-off up to 1000 psi to ensure dependable operation
- Spring return, non fail-safe, and electronic fail-safe actuator to drive the valve open or closed during power failure to meet sequence requirements
- NEMA 4 actuator options for harsh outdoor applications
- High Kvs full port ball valves for isolation applications
- Customer focused organisation with support documentation requirements for plans and specifications
Contractors & Distributors
- Easy selection, installation, and hassle-free service
- Models with tight close-off up to 1400 kPa to ensure dependable operation
- Range of media temperature ratings suited for steam, chilled and hot water applications
- Assembled with rotary actuators offering easy field assembly and installation saving you time
- Fast delivery with extensive support
Building Owners
Building expansion and tenant improvements are a constant challenge to your facility department and the value of your property. You are having difficulty keeping clients comfortable, identifying ways to optimise your HVAC system, and preserving capital budgets. Belimo ball valves can offer:
- High performance VB series ANSI Class I50 or 300 carbon steel bodies which are ideal for aggressive applications
- 0% leakage or ANSI Class VI rating increasing plant Delta T efficiency and building comfort
- Serviceable trim components on VS and VSS series valves reducing replacement cost
- High Kvs ball valves with minimal pressure drop, which are ideal for isolation application where pumping costs are high
- NEMA 4 actuator options for harsh outdoor applications which assure long service life
Facility Managers
Higher energy prices combined with costly building inefficiencies are making your job more and more difficult to perform. While you should be looking for new and innovative ways to reduce energy consumption and improve facility performance, you’re simply too busy dealing with employees, troubleshooting technical issues, and trying to combat costly problems with more money. Belimo ball valves can provide:
- Excellent control stability maintaining occupant comfort level
- Better control to prevent “hunting” of the control loop, increasing life span of actuator and valve
- Models available with tight close-off up to 1400 kPa to ensure dependable operation
- Easy selection, installation, and service for improvement projects or retrofits
- Fast delivery and online technical support
ESCO
You are tasked with communicating to organisations how they can save energy and improve performance — but key opportunities are passing you by. Why? Most of your time is spent searching for new product innovations that are backed by proven and reliable energy savings data. Belimo ball valves offer:
- ANSI Class VI or 0% leakage rating offering increased plant Delta T efficiency and building comfort
- Tight close-off up to 1400 kPa to provide dependable performance
- Actuator to utilise full control signal for maximum resolution and precise control
- High Kvs ball valves with minimal pressure drop. These are ideal for isolation application where pumping costs are high
- Better control to prevent “hunting” of the control loop, increasing life span of actuator and valve
Commissioning Agents / Balancing Contractors
The responsibilities of your job are complex. Between managing and reviewing projects, along with balancing and commissioning systems, you’ve got a lot on your plate. What you’re looking for is an innovative product with proven energy savings data that meets your facility’s specifications without the hassle of a complex installation and/or costly maintenance requirements. Belimo ball valves offer:
- Manual override function to provide easy troubleshooting capabilities during start-up and commissioning
- MFT models with field selectable control and feedback signal, and running time to match design sequences and controller requirements
- Trending with Multi-Function Technology (MFT) models for system diagnosis
- Self-cleaning ball valve technology to provide superior clog resistance and ensure flow is maintained in heating and cooling systems
