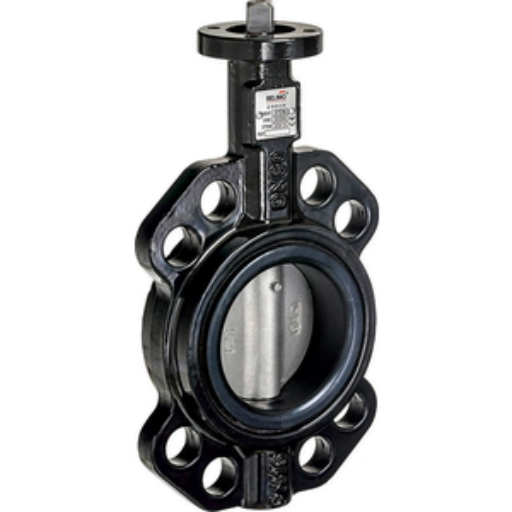

Belimo Butterfly Valves
Applications
The Butterfly valve series is available as Wafer- and Lug-Type in DN 25 – DN 700. It meets the requirements of all HVAC applications requiring zero leakage for 2-way and 3-way applications.
The most intelligent butterfly valve on the market
Butterfly valve assemblies are available in sizes from 50 to 1200mm for 2-way application designed for piping systems requiring zero leakage. The assemblies are available with IP54 or IP66/ 67 housing and offer a range of Kvs values to provide an economic control valve solution for large high flow applications.
Game-changing butterfly control valves from DN 100 to DN 150
Say goodbye to high energy consumption, inefficiency, discomfort, and sky-high costs caused by outdated valves. We’ve revolutionized the industry by rendering these problems, along with the hassle of finding compatible retrofit solutions, a thing of the past. Thanks to our new butterfly control valves, ranging from DN 100 to DN 150, all these challenges have been solved for you. Join us on the journey towards sustainable and cost-effective HVAC solutions.
Learn more about our new control butterfly valves at the product launch event:
Key benefits of butterfly control valves from Belimo
The Belimo butterfly control valves are a smart, energy-efficient, and reliable solution for high-flow applications in the HVAC industry. They are perfectly suited for heating, chiller, and cooling tower applications, changeover systems, control applications for large ventilation systems, and bypass applications. The benefits of these new products include:
- JR and PR Actuator with high-performance chip allows smooth and efficient operation and ensures that the butterfly control valve operates with high precision
- Tight shut off leads to energy savings in HVAC applications as well as money savings
- Simple installation, commissioning, and maintenance with the Belimo Assistant App
- Access to diagnostic options via the App
- Application parameters option such as linear or equal percentage control characteristic is available, communication protocol is also available for BACnet MS/TP, Modbus RTU and Belimo MP-BUS
- Up to two temperature sensors can be connected to create an optimised system
- The product stands out for its quality, flexibility, reliability and durability
8 reasons for using Belimo butterfly valves
1. Flexible utilisation options
2. Absolute seal integrity
3. Energy-saving design
4. Reduced weight and low installation height
5. Transparent communication
6. Seamless integration of sensors
7. High operating safety
8. Fit for reliable control tasks
Only the best is good enough
Our commitment to continuous improvement remains unwavering as we methodically enhance our products on the basis of the latest research, the expertise of experienced engineers and customer feedback. Innovation lies at the heart of our quality guarantee, driving us to create products that meet and surpass our customers’ expectations. This was also the case when we developed the butterfly control valve range from DN 100 to DN 300 together with the JR and PR actuator.
The new butterfly control valves are designed with the highest quality materials to ensure durability and reliability. In over one million test cycles, we have thoroughly tested the products under real-life conditions and in our laboratories. Robustness, reliability, and water resistance, among other things, have been successfully tested, and third parties conducted all relevant certification tests. A 5-year warranty backs Belimo products.
Belimo butterfly control valve at a glance
- Our successful product range has been further enhanced with the launch of the butterfly control valves from DN 100 to DN 150. This addition allows us to cover a wide range of applications, up to DN 300. More to come soon up to DN 450.
- Also, don’t forget to check out our full range of current butterfly valves, reaching from the small size of DN 25 up to the enormous size of DN 1200.
Specification
Valve size (mm): 25 mm, 32 mm, 40 mm, 50 mm, 65 mm, 80 mm, 100 mm, 125 mm, 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm, 1200 mm
kvs range (kvs): 15…40 kvs, 41…170 kvs, 171…1000 kvs, 1001…10000 kvs, 10001…42800 kvs, > 42800 kvs
Kvmax range: 41…170 Kvmax, 171…1000 Kvmax, 1001…10000 Kvmax, 10001…42800 Kvmax
End connection: Lug types, Wafer types
Close-off pressure: 1000 kPa,1200 kPa, 2200 kPa
PN: 6 / 10 / 16 PN , 10 / 16 PN , 16 PN , 25 PN
Consulting Engineers
Your analytical skillset makes you an invaluable asset to your organisation. Though your job is to design systems and operating sequences that meet energy codes to make facilities run more efficiently, you constantly find yourself collecting information and analysing data when it could be spent looking for new and innovative ways to save energy and improve building performance. Belimo ball valves provide:
- Models available with tight close-off up to 1000 psi to ensure dependable operation
- Spring return, non fail-safe, and electronic fail-safe actuator to drive the valve open or closed during power failure to meet sequence requirements
- NEMA 4 actuator options for harsh outdoor applications
- High Kvs full port ball valves for isolation applications
- Customer focused organisation with support documentation requirements for plans and specifications
Contractors & Distributors
- Easy selection, installation, and hassle-free service
- Models with tight close-off up to 1400 kPa to ensure dependable operation
- Range of media temperature ratings suited for steam, chilled and hot water applications
- Assembled with rotary actuators offering easy field assembly and installation saving you time
- Fast delivery with extensive support
Building Owners
Building expansion and tenant improvements are a constant challenge to your facility department and the value of your property. You are having difficulty keeping clients comfortable, identifying ways to optimise your HVAC system, and preserving capital budgets. Belimo ball valves can offer:
- High performance VB series ANSI Class I50 or 300 carbon steel bodies which are ideal for aggressive applications
- 0% leakage or ANSI Class VI rating increasing plant Delta T efficiency and building comfort
- Serviceable trim components on VS and VSS series valves reducing replacement cost
- High Kvs ball valves with minimal pressure drop, which are ideal for isolation application where pumping costs are high
- NEMA 4 actuator options for harsh outdoor applications which assure long service life
Facility Managers
Higher energy prices combined with costly building inefficiencies are making your job more and more difficult to perform. While you should be looking for new and innovative ways to reduce energy consumption and improve facility performance, you’re simply too busy dealing with employees, troubleshooting technical issues, and trying to combat costly problems with more money. Belimo ball valves can provide:
- Excellent control stability maintaining occupant comfort level
- Better control to prevent “hunting” of the control loop, increasing life span of actuator and valve
- Models available with tight close-off up to 1400 kPa to ensure dependable operation
- Easy selection, installation, and service for improvement projects or retrofits
- Fast delivery and online technical support
ESCO
You are tasked with communicating to organisations how they can save energy and improve performance — but key opportunities are passing you by. Why? Most of your time is spent searching for new product innovations that are backed by proven and reliable energy savings data. Belimo ball valves offer:
- ANSI Class VI or 0% leakage rating offering increased plant Delta T efficiency and building comfort
- Tight close-off up to 1400 kPa to provide dependable performance
- Actuator to utilise full control signal for maximum resolution and precise control
- High Kvs ball valves with minimal pressure drop. These are ideal for isolation application where pumping costs are high
- Better control to prevent “hunting” of the control loop, increasing life span of actuator and valve
Commissioning Agents / Balancing Contractors
The responsibilities of your job are complex. Between managing and reviewing projects, along with balancing and commissioning systems, you’ve got a lot on your plate. What you’re looking for is an innovative product with proven energy savings data that meets your facility’s specifications without the hassle of a complex installation and/or costly maintenance requirements. Belimo ball valves offer:
- Manual override function to provide easy troubleshooting capabilities during start-up and commissioning
- MFT models with field selectable control and feedback signal, and running time to match design sequences and controller requirements
- Trending with Multi-Function Technology (MFT) models for system diagnosis
- Self-cleaning ball valve technology to provide superior clog resistance and ensure flow is maintained in heating and cooling systems
