POT-BASKET TYPE STRAINER (ANSI 150#, 300#)
POT-BASKET TYPE STRAINER (ANSI 150#, 300#) - Image 2

POT-BASKET TYPE STRAINER (ANSI 150#, 300#)

Applications:

Strainer can be used in liquid as well as gas line, Regulator and valve protection, steam traps protections, flow meter and pump protections, heat exchanger and refrigeration set protection, Suitable for Hazardous environments.

Y-Strainers and pot basket type strainers is a device for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. Where the amount of material to be removed from the flow is relatively small, resulting in long intervals between screen cleanings, the strainer screen is manually cleaned by shutting down the line and removing the strainer cap.

Technical Data :

Design Std. As per ASME B16.34
Testing Std. As per API 598
End Connection Flanged Drill as per ANSI B16.5
Material Body : IS 2062, Seal : NBR / PTFE / Graphite + SS, Mesh : SS
Shell Wall Thickness As per ANSI B16.34
Size 2″ to 18″, Class 150, 300

Dimensions 150#

Size F/F A B
50 320 190 285
80 360 200 320
100 400 210 360
125 460 230 430
150 510 240 430
200 560 280 530
250 810 420 635
300 890 430 715

Dimensions 300#

Size F/F A B
50 380 200 305
80 420 235 400
100 475 260 405
125 510 275 435
150 620 295 490
200 630 345 560
250 900 390 690
300 1000 440 770

All dimensions are in mm.

ENQUIRY!
Description

General Notes :

  • Customization and automation as per customer requirements.
  • Certificate of compliance to EN10204 Type 3.1 as standard.
  • Safety stock as per customer requirements.
  • 100% factory tested and inspected valves as per standard.
  • Other trims also available as per customer requirements.
  • Support to customers for other product requirements from sources.
  • Consult to Factory for Other Details.

Related products

Armstrong Expansion Tanks

,
ENQUIRY!
  • Applications-Pressure stabilization in water based mechanical systems such as booster installations, boiler systems, and chiller plants
  • Description-Armstrong Expansion Tanks are designed to reduce tank sizes by up to 80% over standard designs. Expansion tanks use compressed air to maintain system pressures by accepting and expelling the changing volume of water as it heats and cools. Diaphragm or bladder tank designs isolate the expanded water from the pressure controlling air cushion – which is pre-charged at the factory and can be adjusted in the field to meet final system requirements
  • Materials (MOC)-Carbon steel (shell), heavy duty Butyl (diaphragm)
  • Performance range-AET plain steel expansion tanks: 15 to 525 USgpm flow.
    AX diaphragm expansion tanks: 8 to 211 USgpm flow.
    Type L bladder type expansion tanks: 10 to 1056 USgpm flow.
Quick view

Armstrong Flo-Trex Valves

,
ENQUIRY!
  • Applications-HVAC-system pumping; general purpose pumping; industrial/ process pumping (water or glycol based).
  • Description-The Armstrong Flo-Trex Valves (FTV) are multi-function pump fittings that reduce equipment and installation costs.
  • Materials (MOC)-Cast iron, ductile iron; grooved, flanged or threaded connections.
  • Performance range-Suitable for all Armstrong commercial pumps.
  • Temperature-230 °F (110 °C)
  • Size-1.25” to 20” (32 mm to 500 mm)
Quick view

Ball Valves One Piece Full, Bore Screw end (150#)

,
ENQUIRY!

Technical Data :

Design Std. As per ISO 17292 & BS 5351
End Connection Screwed End
Testing & Std. As per API 598 / ISO 5208
Size, 150# 15 mm to 50 mm (1/2" to 2")

MATERIAL (MOC)

Sr. No. Description Material
1 Body WCB / CF8 / CF8M
2 Cap WCB / CF8 / CF8M
3 Ball CF8 / CF8M
4 Steam SS304 / SS316
5 Gland SS304 / SS316
6 Seat Ring PTFE / GFT /CFT
7 Body Seal PTFE / GFT /CFT
8 Gland Packing PTFE / GFT /CFT
9 Gland Nut MS/SS304
10 Lever Nut MS/SS304
11 Lever MS/SS

Dimensions 150#

Size NB F/F Thread Type
15 12.5 58.8 BSP/NPT
20 19.0 68.5 BSP/NPT
25 25.0 76.5 BSP/NPT
32 32.0 90.0 BSP/NPT
40 38.0 100.0 BSP/NPT
50 50.0 118.0 BSP/NPT



All Dimensions are in mm

Quick view

Ball Valves Three Piece, Full Bore, Flange end (150#, 300#)

,
ENQUIRY!

Technical Data :

Design Std. As per ISO 17292 & BS 5351
End Connection Flanged End
Testing Std. As per API 598 or ISO 5208
Size 150# & 300# 15 mm to 300 mm (1/2" to 12")

MATERIALS (MOC)

Sr. No. Description Material
1 Body CI /WCB / CF8 / CF8M
2 Adaptor CI / WCB / CF8 / CF8M
3 Ball CF8 / CF8M
4 Stem SS304 / SS316
5 Gland SS304 / SS316
6 Seat Ring PTFE / GFT / CFT
7 Body Seal PTFE / GFT / CFT
8 Gland Packing PTFE / GFT / CFT
9 Stem Seal PTFE / GFT / CFT
10 Gland Nut MS / SS304
11 Lever Nut MS / SS304
12 Lever MS / SS
13 Stud Ms / SS304
14 Stud Nut Ms / SS304
15 Stud Washer Ms / SS304
16 Lever Washer PVC

DIMENSIONS 150#

Size Dia D PCD F/F
15 90 60.5 108
20 100 70 117
25 110 79.5 127
40 125 98.5 165
50 150 120.5 178
65 180 139.5 191
80 190 152.5 203
100 230 190.5 229
150 280 241.5 267
200 345 298.5 292
250 405 362 330
300 485 432 356

DIMENSIONS 300#

Size Dia D PCD F/F
15 95 66.5 140
20 115 82.5 152
25 125 89 165
40 155 114.5 190
50 165 127 216
65 190 149 241
80 210 168.5 283
100 255 200 305
150 320 270 403
200 380 330 419
250 445 387.5 457
300 520 451 502

All dimensions are in mm.

Quick view

Ball Valves Two Piece, Metal Seated (150#, 300#)

,
ENQUIRY!

Description

Kansei product KMS (Two-piece metal seated ball valve) in metal seated design as an additional option to our soft seated full port flanged series. This option increases the temperature rating to 750°F (399°C) and enhances wear resistance, while maintaining the proven safety and reliability of existing valves.

Technical Data :

  • Size Range: DN 15 (1/2”) – DN 200 (8”)
  • Pressure: ASME Class 150 & 300
  • Temperature range: Up to 400 deg. C
  • Seat : SS 304 / SS316
  • End Connections : Flanged ASME B16.5
  • With ISO PAD
Design Std. As per ISO 17292 & BS 5351
End Connection Flanged End
Testing Std. As per API 598 or ISO 5208
Size 150# & 300# 15 mm to 300 mm (1/2" to 12")

MATERIALS (MOC)

Sr. No. Description Material
1 Body CI /WCB / CF8 / CF8M
2 Cap CI / WCB / CF8 / CF8M
3 Ball CF8 / CF8M
4 Stem SS304 / SS316
5 Gland SS304 / SS316
6 Seat Ring SS304 / SS316
7 Body Seal PTFE / GFT / CFT
8 Gland Packing PTFE / GFT / CFT
9 Stem Seal PTFE / GFT / CFT
10 Gland Nut MS / SS304
11 Lever Nut MS / SS304
12 Lever MS / SS
13 Stud & Nut Ms / SS304
14 Lever Sleeve PVC
15 End Cap PVC

DIMENSIONS 150#

Size Dia D PCD F/F
15 90 60.5 108
20 100 70 117
25 110 79.5 127
40 125 98.5 165
50 150 120.5 178
65 180 139.5 191
80 190 152.5 203
100 230 190.5 229
150 280 241.5 267
200 345 298.5 292
250 405 362 330
300 485 432 356

DIMENSIONS 300#

Size Dia D PCD F/F
15 95 66.5 140
20 115 82.5 152
25 125 89 165
40 155 114.5 190
50 165 127 216
65 190 149 241
80 210 168.5 283
100 255 200 305
150 320 270 403
200 380 330 419
250 445 387.5 457
300 520 451 502



All dimensions are in mm.

Quick view

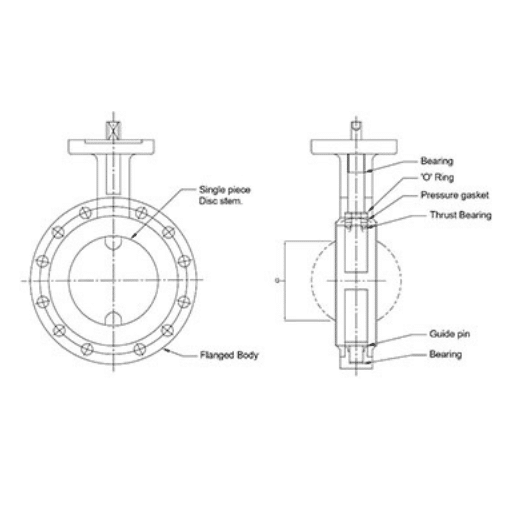

BUTTERFLY VALVE PFA/PTFE Lined, Centric Bi-directional
